Facade Profiles


With Poimukate facade profiles You can construct a clear and simple wall surface for buildings of all ages and styles. A textured style combined with a facade cassette surface is also an excellent complementary. Our facade profiles are manufactured from steel sheets that are zinc-coated on both sides. The colour coating material for the steel sheets is always chosen according to the purpose of use.




PK15

• PK15 B / PK15 V
• material thickness 0,45-0,60 mm
• effective width 1141 mm

PK18

• PK18
• material thickness 0,45-0,60 mm
• effective width 1064 mm

PK20E

• PK20E
• material thickness 0,45-0,60 mm
• effective width 1130 mm


PK20R

• PK20R
• material thickness 0,45-0,50 mm
• effective width 1090 mm

PK45E

• PK45E B ja V poimulevy seinään
• levypaksuus 0,45-0,50 mm
• hyötyleveys 1050 mm

PK45R

• PK45E
• material thickness 0,45-0,50 mm
• effective width 800 mm


PK35

• PK35 B or PK35 V
• material thickness 0,45-0,60 mm
• effective width 1060 mm

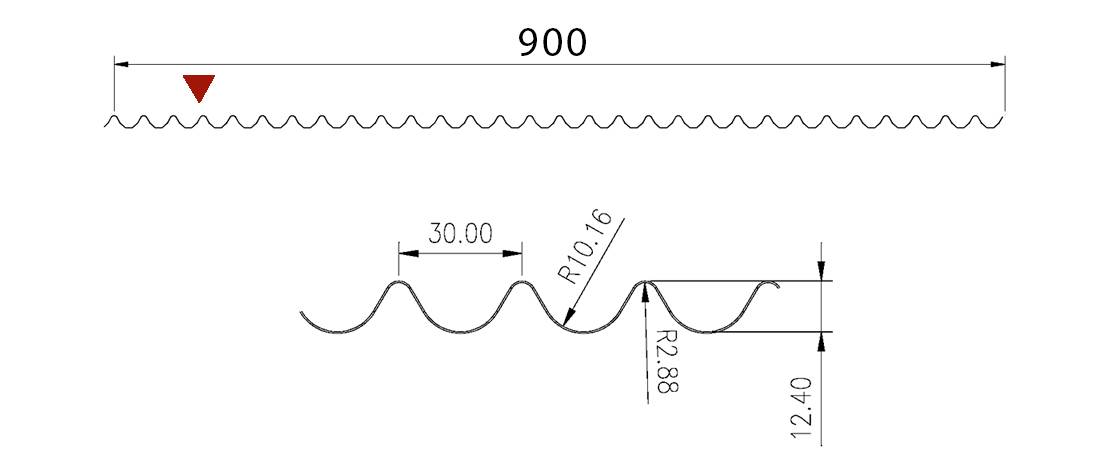

PK12

• PK12
• material thickness 0,60 mm
• effective width 900 mm

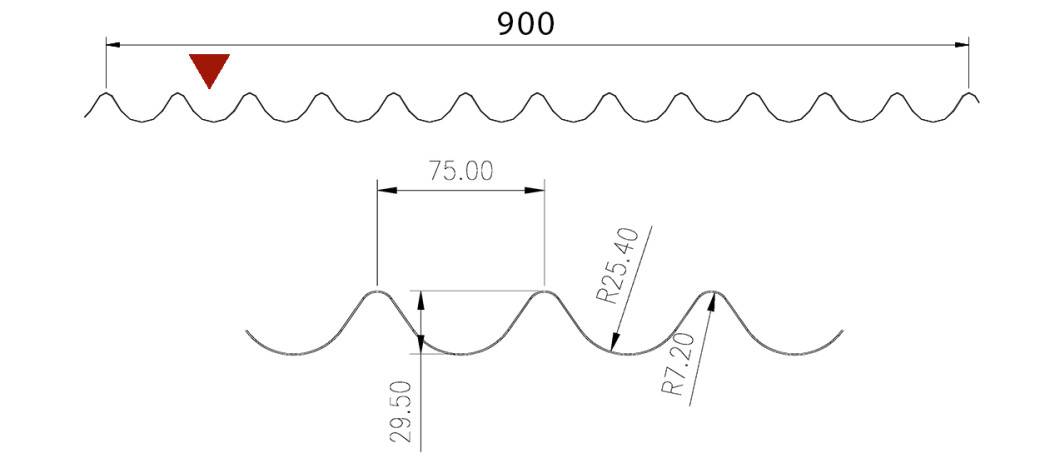

PK30

• PK30
• material thickness 0,60 mm
• effective width 900 mm

Explanations

Kolmio punainen   Coated side

B      Facing wall

V      Facing wall with braced channel


Colors


  • Värikartta havun vihreä
    RR11 spruce green
  • RR20 white
  • Värikartta vaalean harmaa
    RR21 ligth grey
  • Värikartta harmaa
    RR22 grey
  • RR23 dark grey
  • Värikartta tumman punainen
    RR29 red
  • Värikartta tumman ruskea
    RR32 dark brown
  • Värikartta musta
    RR33 black
  • Värikartta tiilen punainen
    RR750 tile red

Coatings




  • P50 is coating with 50 µm thickness. P50 has a coating thickness that is optimized for wear and weather resistance. P50 is available in many colors.
  • MP30  is coating with 30 µm thickness. MP30 provides good color fastness and corrosion resistance
  • P25  is coating with 25 µm thickness. P25 is available in many colors and is typically used in profiled applications such as warehouses, agricultural constructions, halls and sheds.
