Facade Cassettes


Poimukate facade cassettes are always manufactured according to precise measurements. It is advisable to find out the available raw-material widths of the chosen material in order to get the most economical result. The recommended effective area for a cassette is 0,7-1,0 m2. It is also possible to variate the cassette models to suit Your individual needs. We would be delighted to offer You our help right from the beginning of the project.

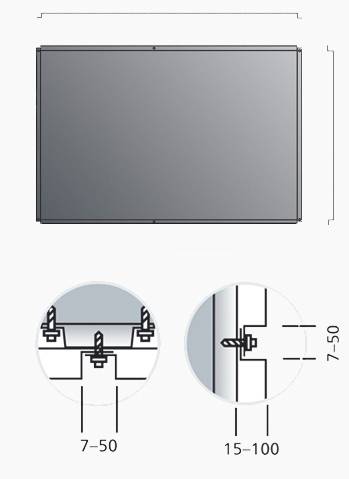

PK101

• Width 500–2500 mm
• Height 300–2500 mm

On the left: Vertical section
On the right: Horizontal section

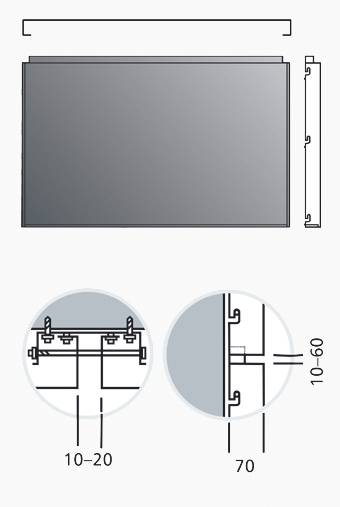

PK104

• Width 500–2500 mm
• Height 300–2500 mm

On the left: Vertical section
On the right: Horizontal section

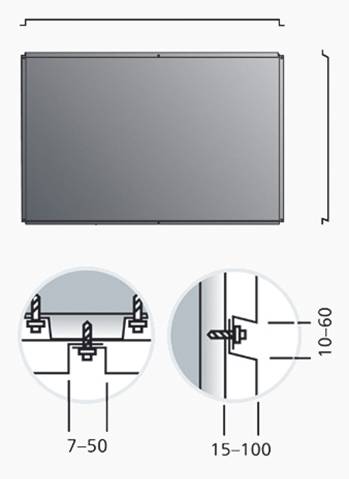

PK102

• Width 500–2500 mm
• Height 300–2500 mm

On the left: Vertical section
On the right: Horizontal section

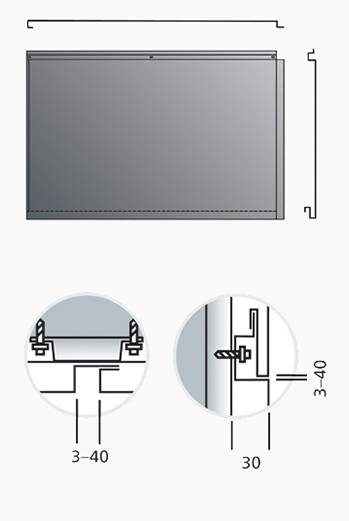

PK105

• Width 500–2500 mm
• Height 300–2500 mm

On the left: Vertical section
On the right: Horizontal section

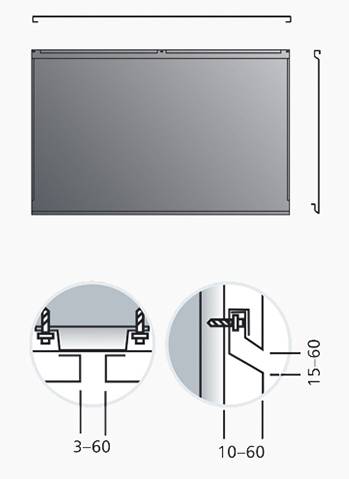

PK103

• Width 500–2500 mm
• Height 300–2500 mm

On the left: Vertical section
On the right: Horizontal section
